K10200 K10201 Diaphragm For Goyen Solenoid Pulse Valve CA102MM RCA102MM
K10200, K10201 Diaphragm for Goyen pulse valve CA102MM, RCA102MM; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Ordering Number of Diaphragm For Goyen Pulse Valve:
| | | | Low Temprature Diaphragm Model |
| | | | |
| | | K2000 (M1204B) K2002 (M764) | | |
| | |
| | | K2501 (M1183B) K2502 (M736) | | |
| | |
| | |
| | |
| | | K2500 (M1183) K2522 (M736) | | |
| | | | | |
| | | | | |
| | |
| | | K4502 (M2162) K4504 (M2187) | | |
| | |
| | |
| | |
| | | K5004 (M1638A) K5005 (M1639A) | | |
| | |
| | | | | |
| | |
| | |
| | | | | |
| | | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| |
| | Shockwave Diaphragm Model | | |
| | | | |
| | | | |
| | | | |
| | | | |

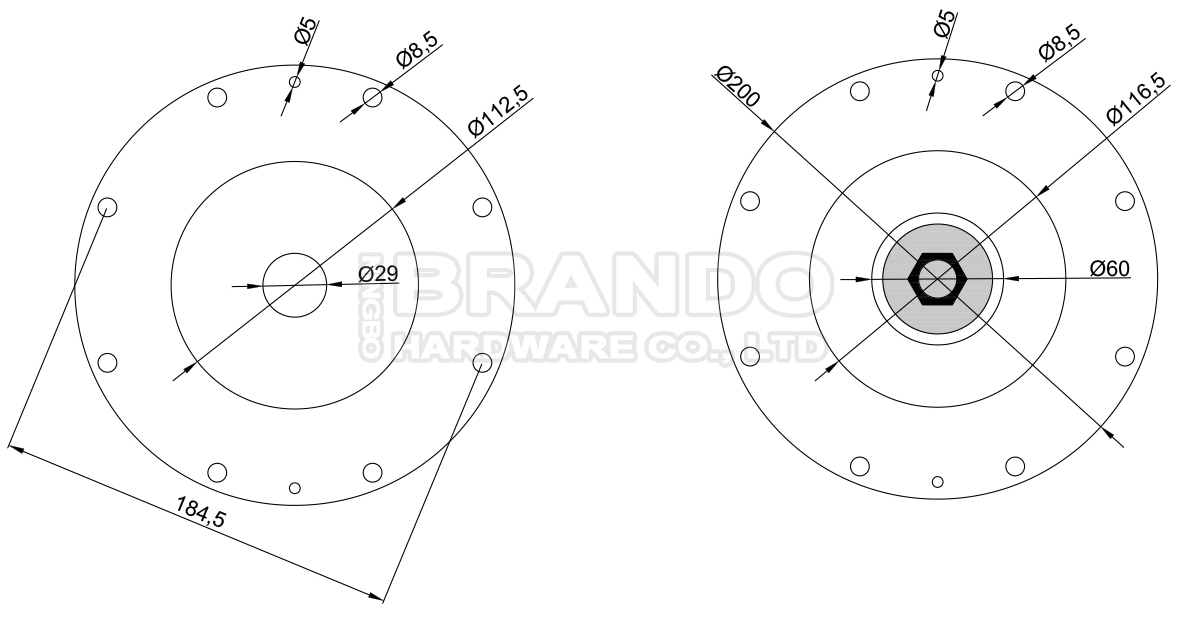

Main Dimension of K10200, K10201 Diaphragm:
Product Video of K10200, K10201 Membrane:
Pictures of Pulse Valve Diaphragm Production:
